Description

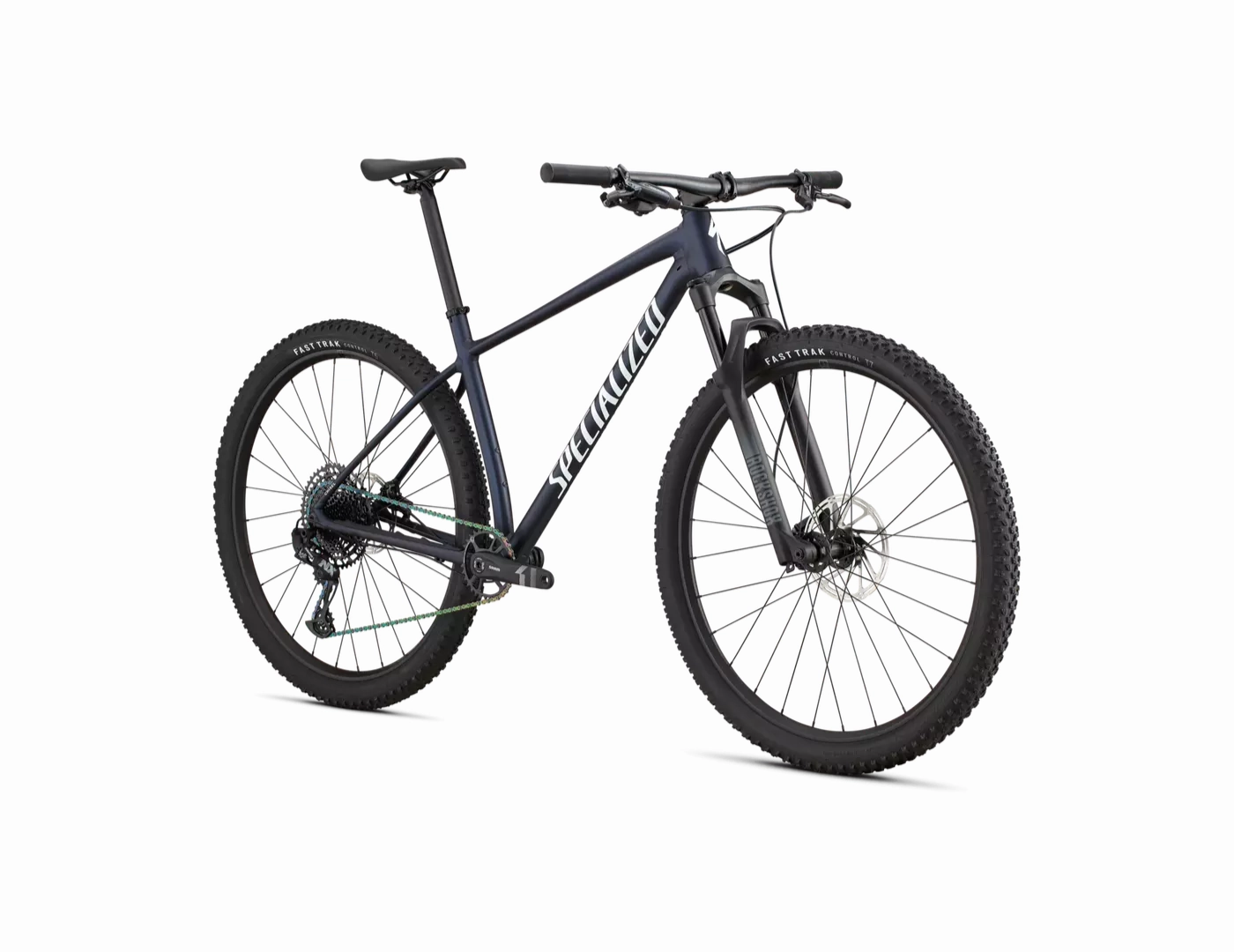

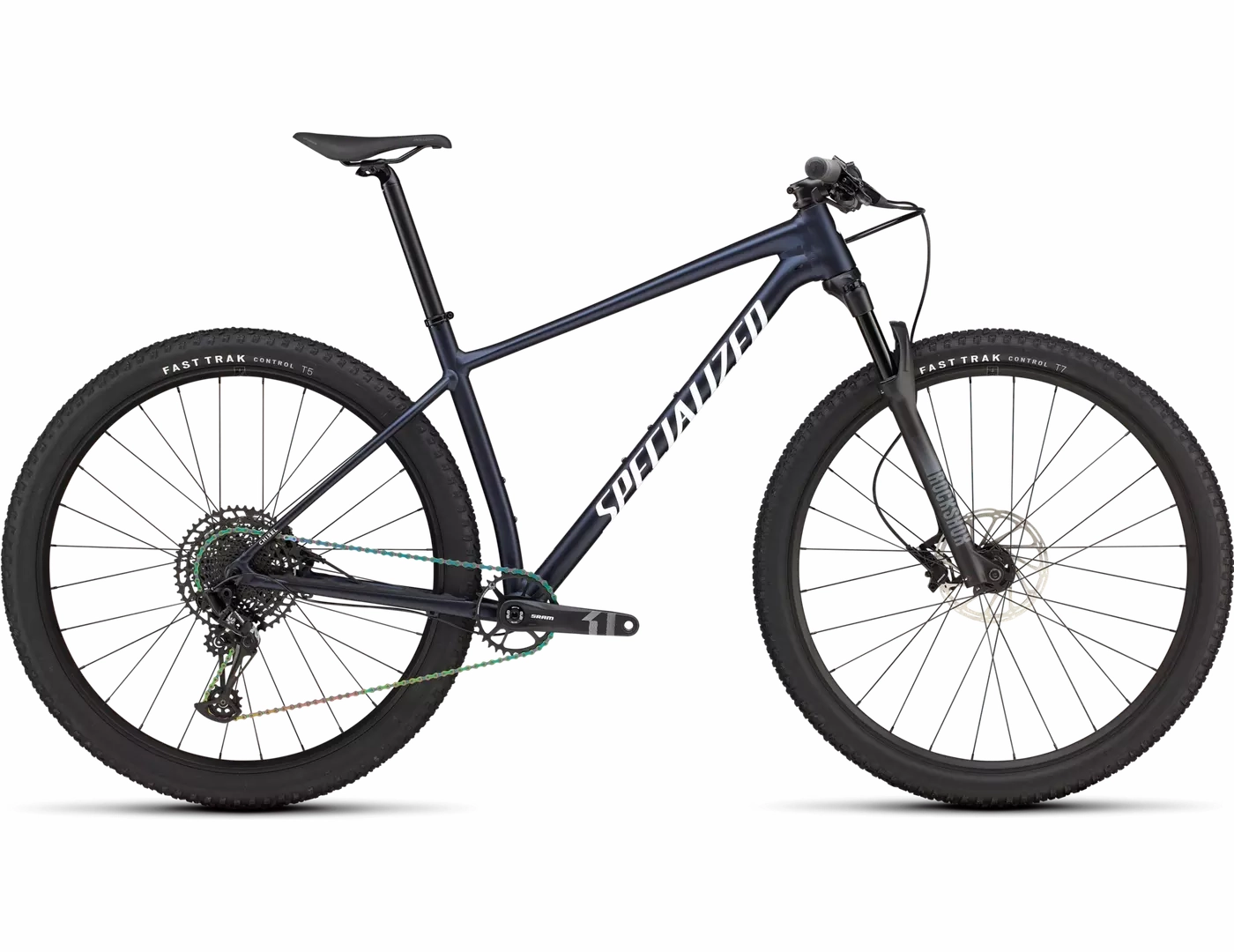

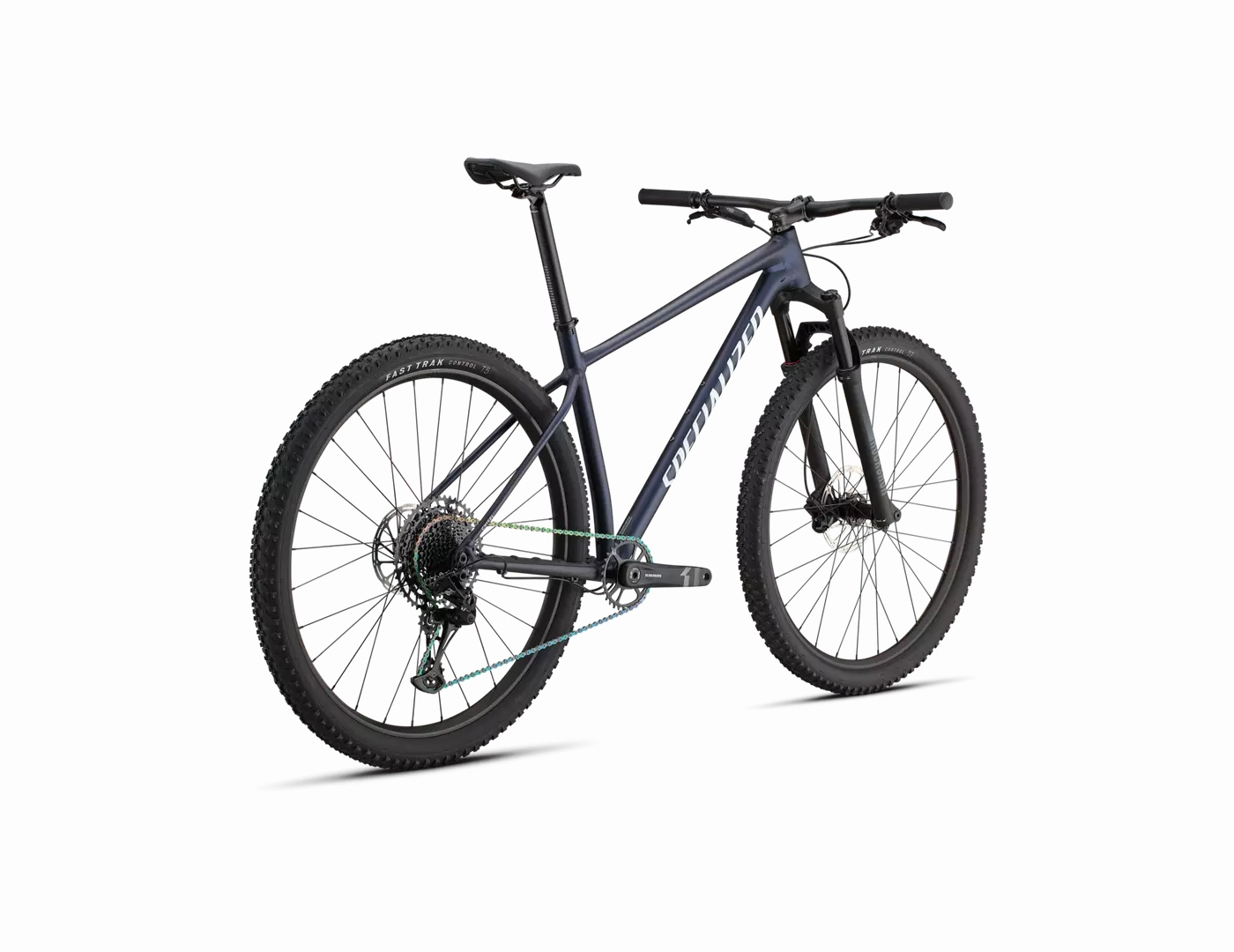

The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly packagemaking it the most efficient and capable alloy hardtail out there.
This Chisel comes with SRAM's tried and true NX Eagle 1x12 speed drivetrain and Level T hydraulic disc brakes, a RockShox Judy Gold fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.
- We asked ourselves, How do we bring pro-level performance down to a price more riders can afford? D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
- The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Specification
Frameset
- Drivetrain
- Bottom Bracket
- SRAM DUB, BSA 73mm, Threaded
- Crankset
- SRAM FC X1 1000 EAGLE B148 DUB 32ST
- Rear Derailleur
- SRAM NX Eagle, 12-speed
- Cassette
- SRAM NX Eagle, 12-speed, 11-50t
- Shift Levers
- SRAM NX Eagle, trigger, 12-speed
- Chain
- SRAM XX1 Eagle, 12-speed
- Chainrings
- 32t
Frameset- Seat Binder
- Specialized Alloy, 34.9mm
- Frame
- Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Suspension- Fork
- RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Brakes- Front Brake
- SRAM Level T hydraulic disc, 2-Piston Caliper
- Rear Brake
- SRAM Level T hydraulic disc, 2-Piston Caliper
Wheels & tires- Rear Hub
- Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h
- Rear Tire
- Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
- Front Tire
- Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
- Rims
- Specialized 29, 27mm inner width, 28h, tubeless ready
- Inner Tubes
- Standard 40mm PV 29x1.75-2.4
- Front Hub
- Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
- Spokes
- Stainless, 14g
Cockpit- Grips
- Specialized Trail Grips
- Saddle
- Body Geometry Power Sport, steel rails
- Handlebars
- Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
- SeatPost
- Specialized Alloy, Single Bolt, 30.9mm
- Stem
- Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Product details- Product ID
- 221772
Weight- Weight
- 11.76 kg (25 lb, 14.8 oz)
- Weight Size
- LG
Geometry
| XS | SM | MD | LG | XL | |
| Crank Length | 165m | 170 | 170 | 175 | 175 |
| Handlebar Width | 750 | 750 | 750 | 750 | 750 |
| Stem Length | 60 | 60 | 70 | 70 | 70 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 |
| Stack | 591 | 605 | 605 | 619 | 633 |
| Reach | 385 | 405 | 430 | 455 | 480 |
| Head Tube Length | 95 | 95 | 95 | 110 | 125 |
| Head Tube Angle | 68 | 68 | 68 | 68 | 68 |
| BB Height | 304 | 309 | 309 | 309 | 309 |
| BB Drop | 68 | 63 | 63 | 63 | 63 |
| Trail | 103 | 103 | 103 | 103 | 103 |
| Fork Length, Full | 486 | 506 | 506 | 506 | 506 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 647 | 674 | 699 | 730 | 760 |
| Chainstay Length | 432 | 432 | 432 | 432 | 432 |
| Wheelbase | 1070 | 1099 | 1124 | 1154 | 1185 |
| Top Tube Length, Horizontal | 555 | 578 | 603 | 632 | 661 |
| Bike Standover Height | 732 | 762 | 792 | 816 | 847 |
| Seat Tube Length | 367 | 400 | 430 | 470 | 520 |
| Seat Tube Angle | 74 | 74 | 74 | 74 | 74 |
