Elevate Your Trail Riding in Style
FREE UPGRADE TO FOX 36 FACTORY FRONT SUSPENSION!

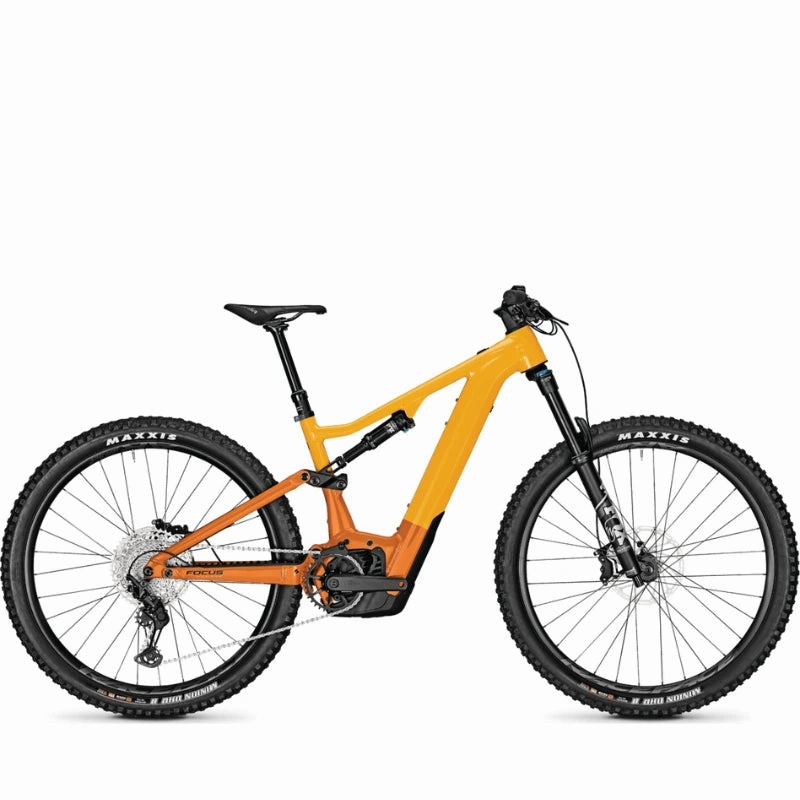

Unleash Trail Mastery with theMustard Yellow FOCUS JAM 6.8
Introducing theMustard YellowEdition of the FOCUS JAM 6.8, where style meets trail-riding prowess. Dominate new heights with the Bosch CX E-Drive and a formidable 750Wh battery. Traverse rough terrains with the 160mm FOX 36 Rhythm Fork and 150mm FOX DPS Performance Shock, all while shifting seamlessly with the Shimano XT 1x12 drivetrain. Elevate your trail-riding experience with precision, power, and a touch of Mustard Yellow flair.
Key Features Overview
BOSCH CX E-DRIVE & 750 WH BATTERY:Experience trail mastery with the super powerful Bosch Performance Line CX E-Drive, delivering up to 85 Nm of torque. The massive 750Wh battery provides an extended range for conquering more trails.
FOX SUSPENSION:Free upgrade to Fox 36 Factory Front Suspension! Conquer rough terrains with confidence using the Kashima Coated 160mm FOX 36 Factory Fork and 150mm FOX DPS Performance Rear Shock, providing superior control and comfort.
SHIMANO XT 1X12 DRIVETRAIN:Effortlessly shift through 12 gears with the Shimano XT drivetrain, offering a wide range to conquer various inclines and terrains.
GEOMETRY FOR MAXIMUM FUN:The frame design ensures a slim look with integrated battery and drive unit. The balanced geometry and adjustable head angle (65.5 to 64.5) enhance stability and adapt to your riding preferences.
F.O.L.D. OPTIMIZED SUSPENSION:The FOCUS Optimised Linkage Design (F.O.L.D.) delivers reactive kinematics for full control on technical or flow trails, while wide 29" tires improve traction.
Mustard YellowEdition - Elevate Your Style on the Trail
The Mustard Yellow Edition of the JAM 6.8 adds a touch of elegance to your trail adventures. This unique colorway, combined with the advanced features of the JAM 6.8, creates a trail-ready masterpiece that not only performs at its best but looks stunning on any terrain.
Geometry for Maximum Fun on All Trails
The JAM 6.8 Mustard Yellow Edition features a perfectly integrated battery and drive unit, creating a slim and agile appearance. Placing the battery low in the down tube enhances stability and lowers the bike's center of gravity. The adjustable head angle allows you to customize the ride, ensuring maximum fun on all types of trails.
Full Control in Any Situation
Optimizing the F.O.L.D. (FOCUS Optimised Linkage Design) ensures reactive kinematics for full control on both technical and flow trails. The wide and tacky 29" tires provide optimal traction, and the strong brakes with precise modulation offer confidence-inspiring control in any riding situation.
Conquer New Trails inMustard YellowStyle
Elevate your trail-riding experience with the FOCUS JAM 6.8 Mustard Yellow Edition. Combining advanced technology, customizable geometry, and a touch of Mustard Yellow style, this e-MTB is your ticket to conquering new trails with precision, power, and undeniable flair. Ride confidently and turn heads on every trail with theMustard Yellow Edition.
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the JAM rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. The Bosch Powertube battery is perfectly integrated into the down tube, yet it can also be removed at any time for charging. For sure, you can also charge it directly on the bike.
Specifications
FRAME | 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
FORK | Free Upgrade! FOX 36 Factory, 29 E-Bike, Grip, 110 x 15 mm axle, 44 mm rake,Kashima Coated |
TRAVEL OF SUSPENSION FORK | 160 mm |
SHOCK | FOX Float DPS Performance, 210 / 55 mm, hardware: 25.0 x 8.0 mm |
MOTOR | Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm |
BATTERY WATT-HOURS | 750Wh |
DISPLAY | Bosch LED Remote Kiox 300 |
SHIFTERS | Shimano SLX M7100, 12-speed |
REAR DERAILLEUR | Shimano Deore XT M8100, 12-speed |
SPROCKET | Shimano SLX M7100, 12-speed |
CHAIN | Shimano SLX CN-M7100, 12-speed |
CRANKSET | FSA CK-320, aluminium |
TRANSMISSION OF DRIVE | front: 34; rear: 10-51 |
BOTTOM BRACKET | Integrated in Drive Unit |
HANDLEBAR | Aluminium, 800 mm, rise: 30 mm, backsweep: 9 |
STEM | FOCUS C.I.S. integrated, 50 mm, 0, 35 mm, aluminium |
HEADSET | ACROS ZS56/ZS60 (ICR), FOCUS C.I.S. Integrated angle headset |
SADDLE | Proxim W350 |
SEATPOST | Post Moderne dropper post PM-214, 34.9 mm |
BRAKE CALIPER | Shimano MT520, hydraulic disc brake |
BRAKE LEVER | Shimano BR-MT520 |
BRAKE | Disc |
RIMS | Novatec D462, 12 x 148mm |
FRONT HUB | Novatec D041, 15 x 110mm |
TIRES | Maxxis Minion DHF, 2.6 3C EXO TR, 66-622 |
GEARS | 12 |
BIKE WEIGHT INCL. BATTERY IN KG | 25.5 |
SIZE | 39, 42, 44, 46 |
SIZE GUIDE
S | M | L | XL | ||
SIZE (MM) | 39 | 42 | 44 | 46 | |
SIZE | 390 | 420 | 440 | 460 | |
HANDLEBAR WIDTH (MM) | 800 | 800 | 800 | 800 | |
STEM LENGTH | 50 | 50 | 50 | 50 | |
CRANKARM LENGTH (MM) | 165 | 165 | 165 | 165 | |
SEAT POST LENGTH | 390 | 440 | 480 | 480 | |
A | SEAT TUBE LENGTH | 390 | 420 | 440 | 460 |
B | EFFECTIVE TOP TUBE | 678 | 608 | 637 | 672 |
C | HEAD TUBE ANGLE (MM) | 65.5 | 65.5 | 65.5 | 65.5 |
D | EFFECTIVE SEAT ANGLE (MM) | 76.5 | 76.5 | 76.5 | 76.5 |
E | CHAINSTAY LENGTH | 450 | 450 | 450 | 450 |
F | BOTTOM BRACKET DROP | 25 | 25 | 25 | 25 |
G | HEAD TUBE LENGTH | 450 | 450 | 450 | 450 |
H | FORK CONSTRUCTION HEIGHT | 571 | 571 | 571 | 571 |
I | PRE-RAKED FORK | 44 | 44 | 44 | 44 |
J | WHEELBASE LENGTH | 1200 | 1230 | 1263 | 1302 |
K | STACK | 616 | 616 | 634 | 652 |
L | REACH | 430 | 460 | 485 | 515 |
