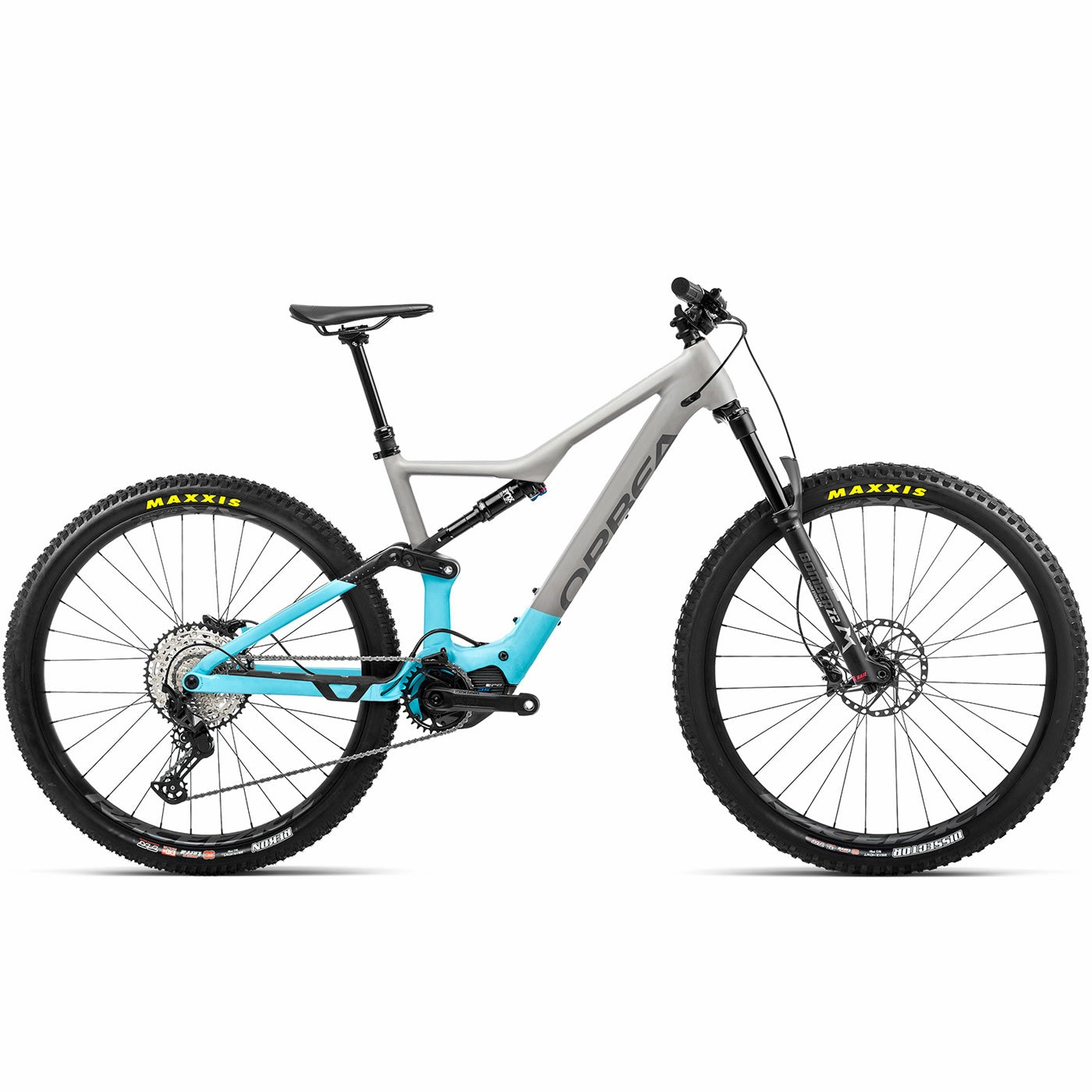

Orbea Rise h30, the same Rise experience, but in aluminum. The Rise H is equipped with the MAIN battery of 540 WH, innovative and highly optimized. It is the lightest e-bike in its category, meaning no other aluminum ebike with the same range and power reaches its level. This aspect is fundamental for us, as we would not have accepted anything less than the fun riding feel and natural pedaling of our Rise family, which users love so much. It features the most advanced aluminum frame, using a hydroforming process and triple-thickness tubes, we have perfected the wall dimensions to save weight and strengthen stress areas. The high-polish finishes have a carbon frame-like appearance and increase fatigue resistance at the welds.
- Frame: Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
- Shock: Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
- Fork: Marzocchi Bomber Z2 140 QR15x110
- Crankset: e*thirteen e*spec Direct Mount 32T Boost
- Crank: e*thirteen Plus Alu
- Headset: Acros Alloy 1-1/8 - 1-1/2" Integrated
- Handlebar: OC1 35mm 12mm Rise 780mm
- Stem: OC1 3D Forged 35mm interface 7
- Levers: Shimano Deore M6100
- Brakes: Shimano MT410 Hydraulic Disc
- Discs: Brake 180mm Front /180mm Rear
- Cassette: Shimano CS-M7100 10-51t 12-Speed
- Rear Derailleur: Shimano SLX M7100 SGS Shadow Plus
- Chain: Shimano M6100
- Wheels: Race Face AR 30c Tubeless Ready
- Tire: Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
- Tire: Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo TLR
- Dropper Post: OC MC20 Mountain Control Dropper, 31.6mm
- Remote Dropper Post: OC Horizontal
- Saddle: Fizik Taiga S-alloy rail
- Chain Guide: Orbea Rise chainguide
- Motor: Shimano EP8-RS
- Battery: Orbea RS Internal 540Wh
- Display: Shimano SC-E7000
- Charger: Orbea Smart Charger (42V-4A)
- Remote: Shimano E7000 switch unit for assist
- Color: Grey/blue (mouse grey/sky blue matt).
