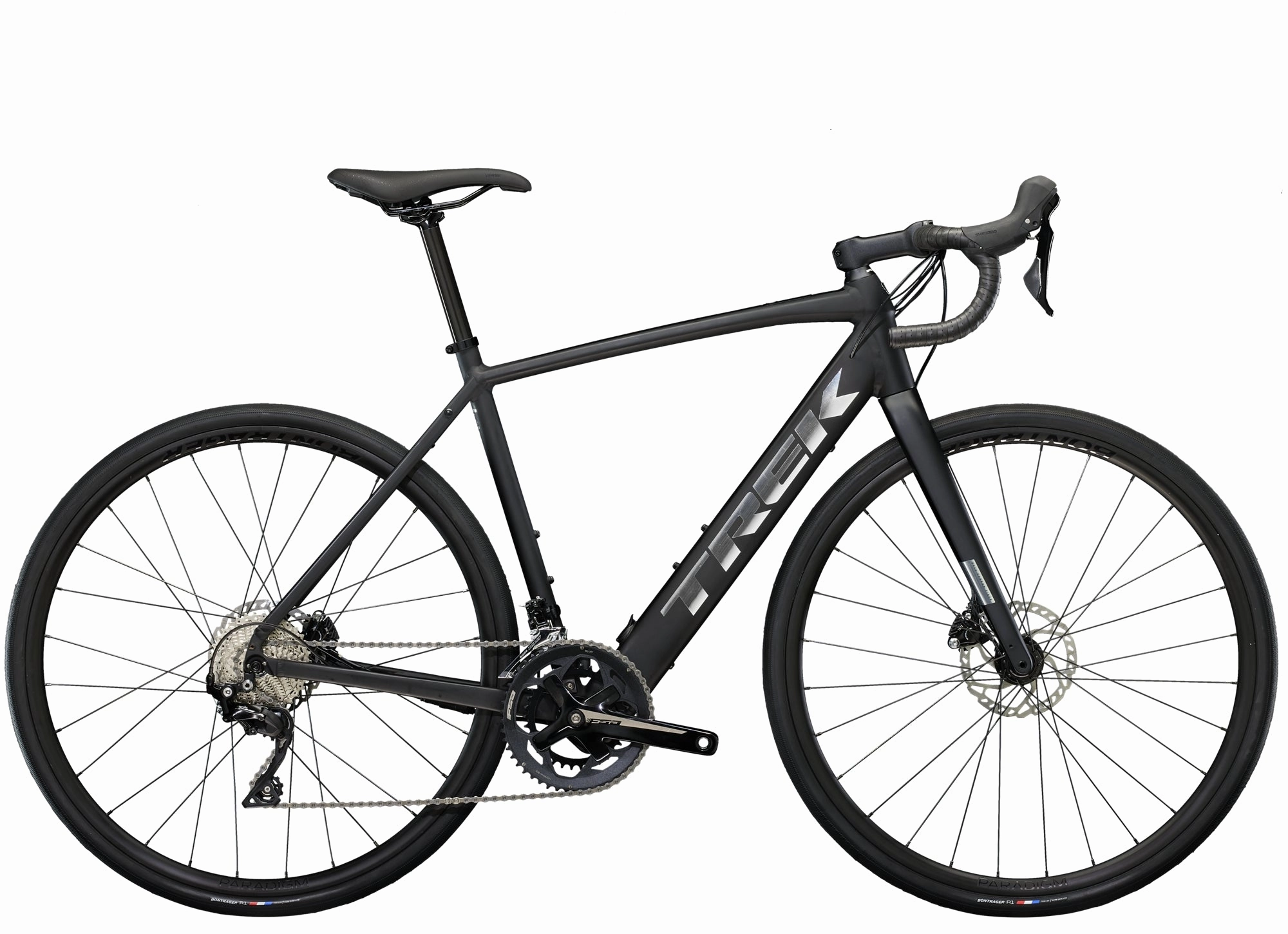

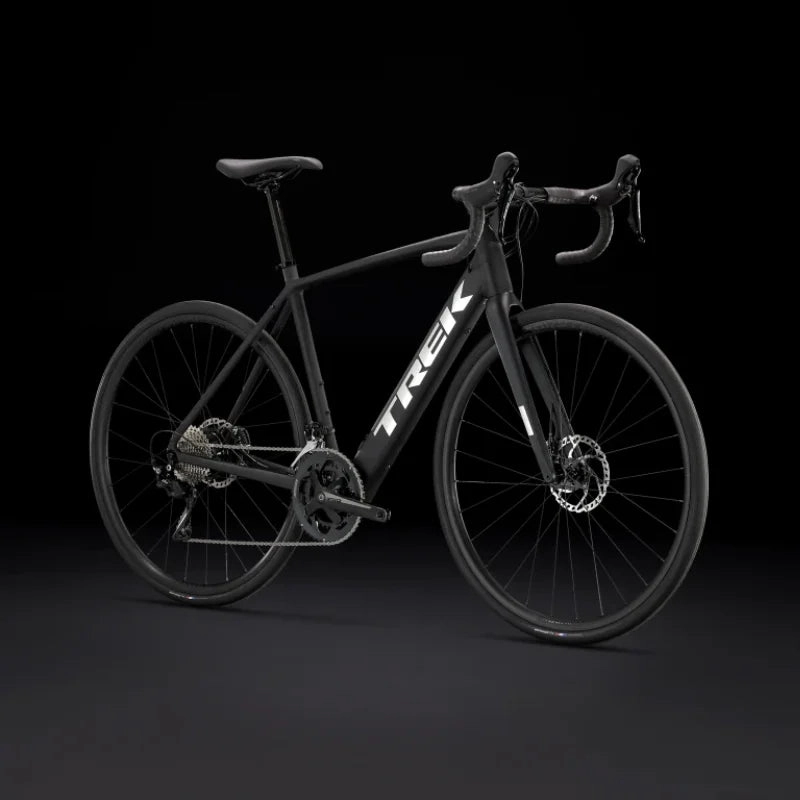

Trek Domane AL 5 - Trek Black: Elevate Your Road Riding Experience

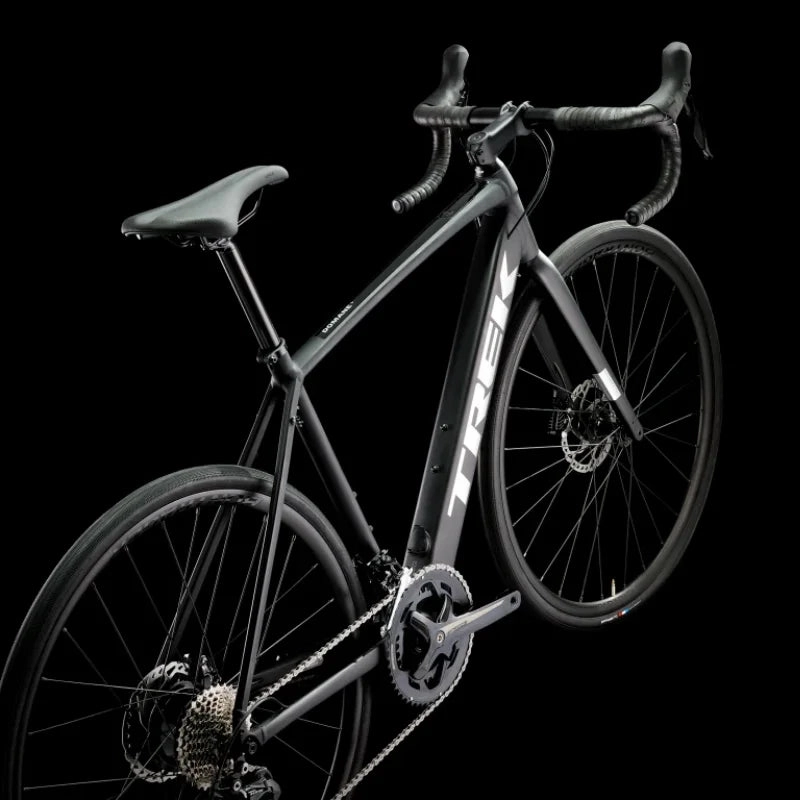

Introducing the Domane AL 5, a lightweight alloy e-road bike that seamlessly blends the traditional road bike essence with the exhilarating advantage of electric boost. Designed for those who seek to extend their road cycling horizons, the bike's HyDrive pedal assist system offers an intuitive and natural augmented riding experience, enabling you to keep up with the pack, conquer challenging terrains, or intensify your training sessions with ease.
Ideal For: Cyclists seeking the performance and aesthetics of a high-value e-road bike that mirrors the feel of conventional road bikes. Whether aiming to amplify your training rides, enjoy club outings with an extra kick, or simply relish in the freedom of extended rides, the Domane AL 5 caters to a broad spectrum of aspirations with its subtle and effective pedal assist.
Technological Highlights:
- Engineered with a lightweight aluminum frame and fork for responsive handling.
- Features the refined HyDrive hub motor (250 W, 40 Nm) offering support up to 25 km/h, paired with a 250 Wh battery delivering a range of up to 90 kilometers per charge.

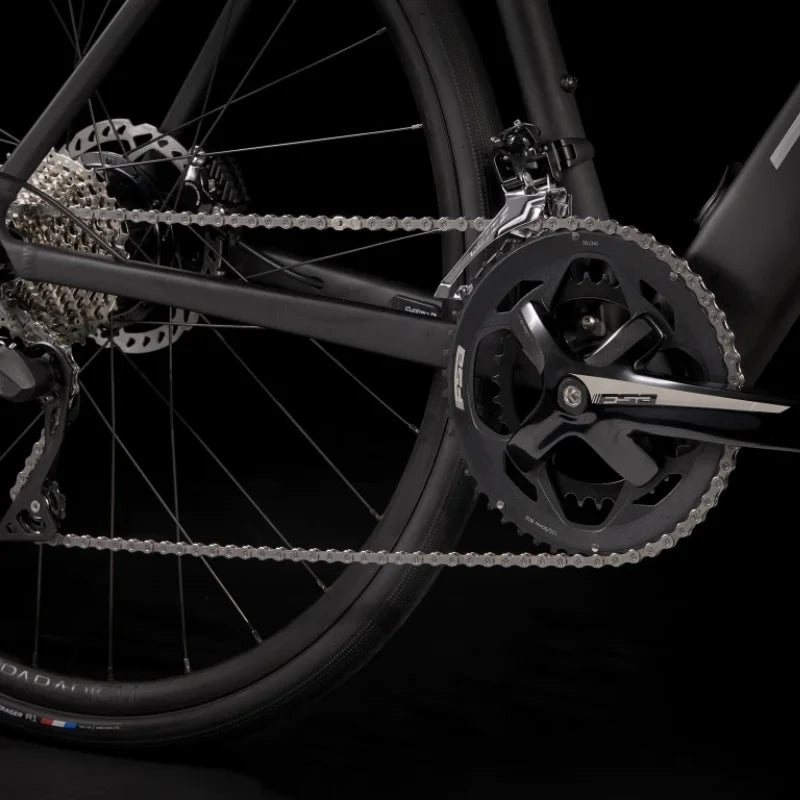

- A reliable Shimano 105 2x11 drivetrain, combined with tubeless-ready wheels, ensures smooth shifting and adaptable performance across varying landscapes.

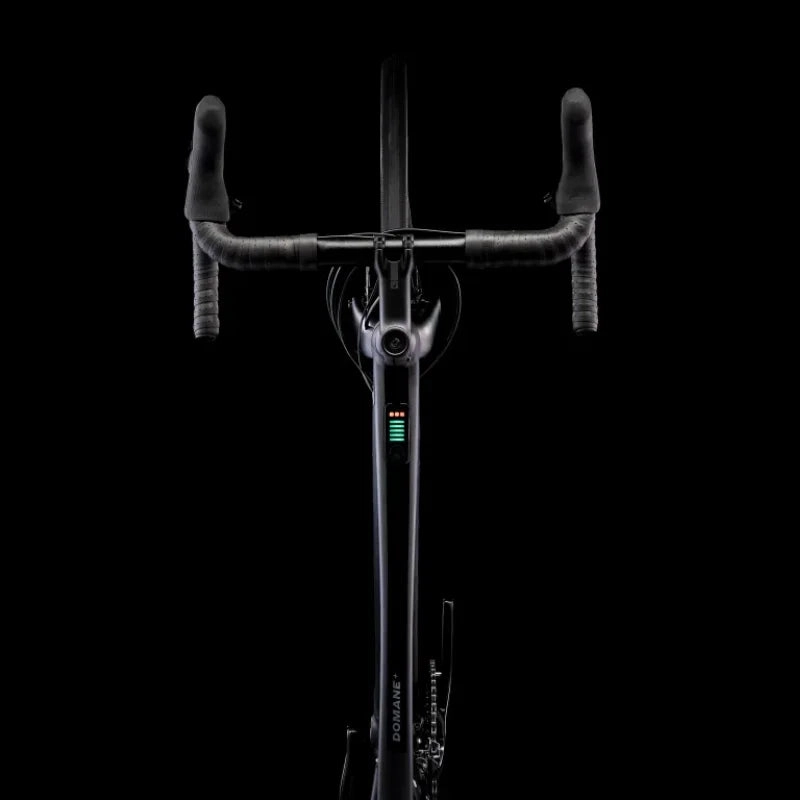

- Elite IsoZone handlebars absorb road vibrations, enhancing comfort during longer rides.
The Verdict: The Domane AL 5 stands as a paragon of e-road biking, boasting a sleek drive system that magnifies your cycling adventures without compromising the genuine road bike feel. Its the perfect fusion of traditional cycling dynamics and modern electric assist technology.
Why It Excites:
- Presents the authentic appearance, ride quality, and handling of a traditional road bike, augmented with discreet e-assist features.
- The HyDrive system's hub motor facilitates a more natural and enjoyable ride feel, distinguishing it from other e-bikes.

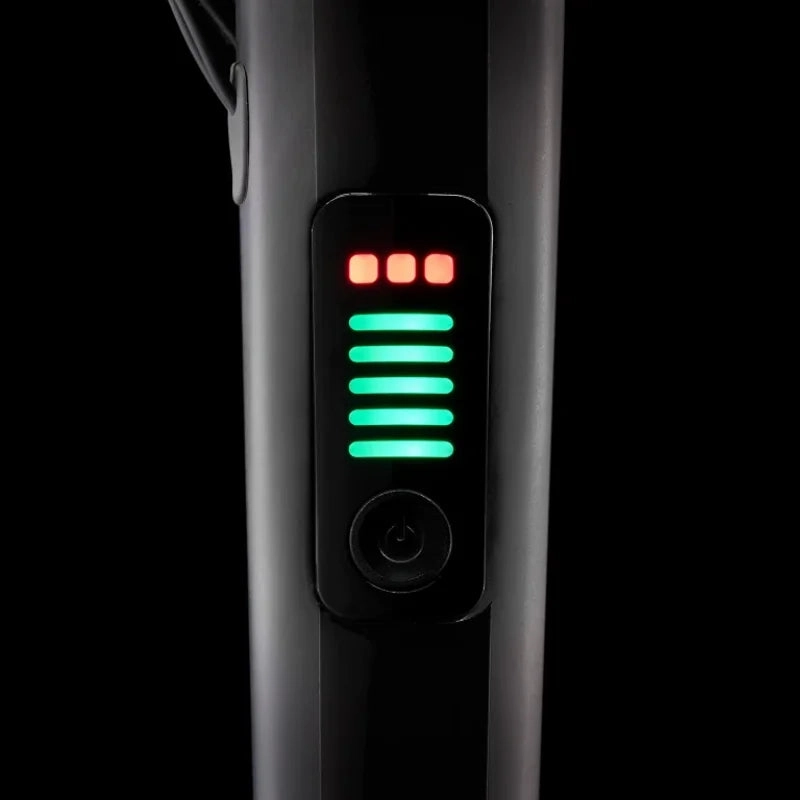

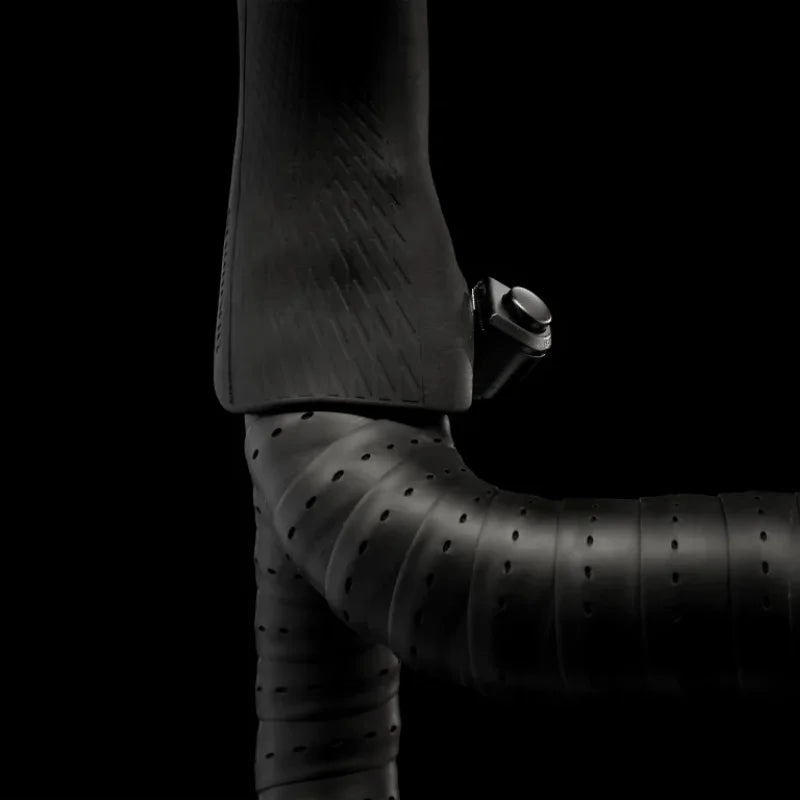

- An innovative HyDrive Bluetooth controller offers straightforward adjustments to ride settings and displays essential information such as speed and battery life.
- Stable Endurance Geometry ensures enduring comfort and unwavering confidence across all your road explorations.
- The potential to double your exploration range with the optional 250 Wh Range Extender battery, effortlessly integrating into your bottle cage for convenient access and balance.
The Trek Domane AL 5 - Trek Black redefines the contours of road cycling, inviting you to a world where endurance meets electrification, allowing you to extend your journeys further and with greater joy.
Specification
Trek Domane AL 5 Specification
FRAMESET

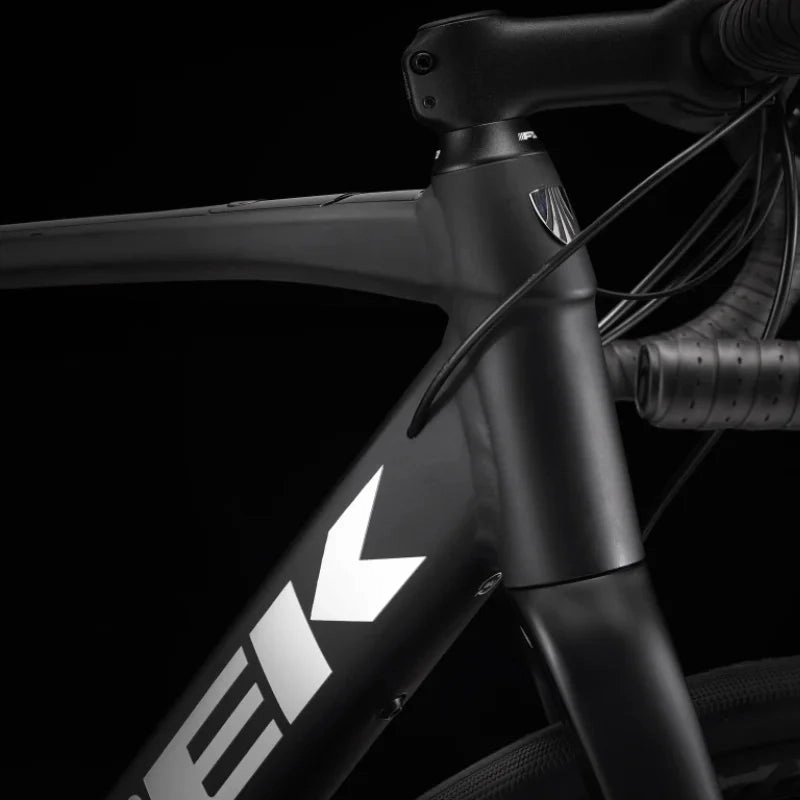

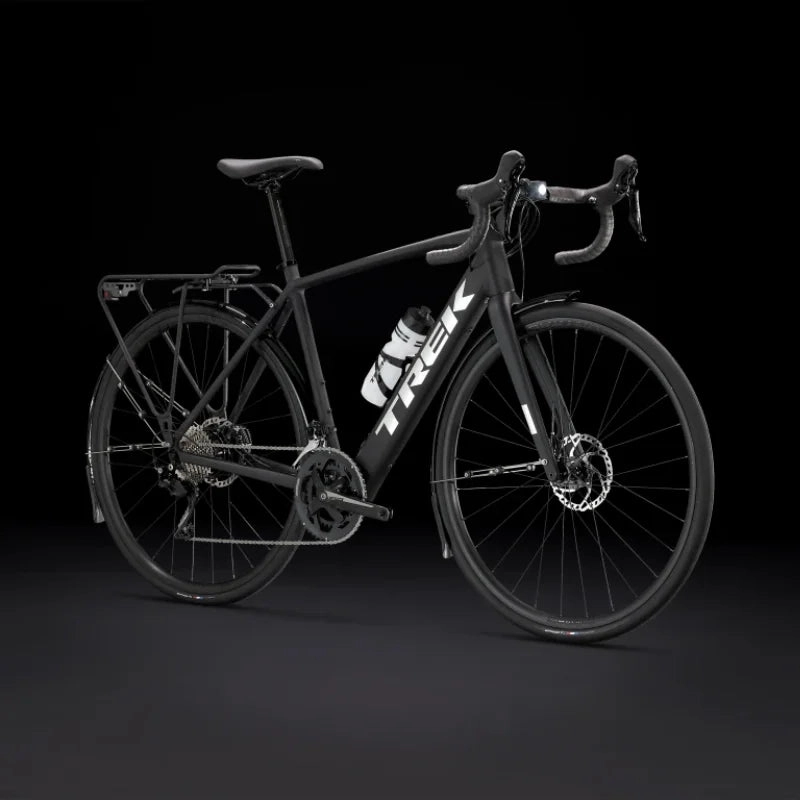

| Frame | 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts |
| Fork | Domane carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle |
| Shock | Endurance |
WEIGHT
| Weight | 56 - 14.06 kg / 31 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-SYSTEM

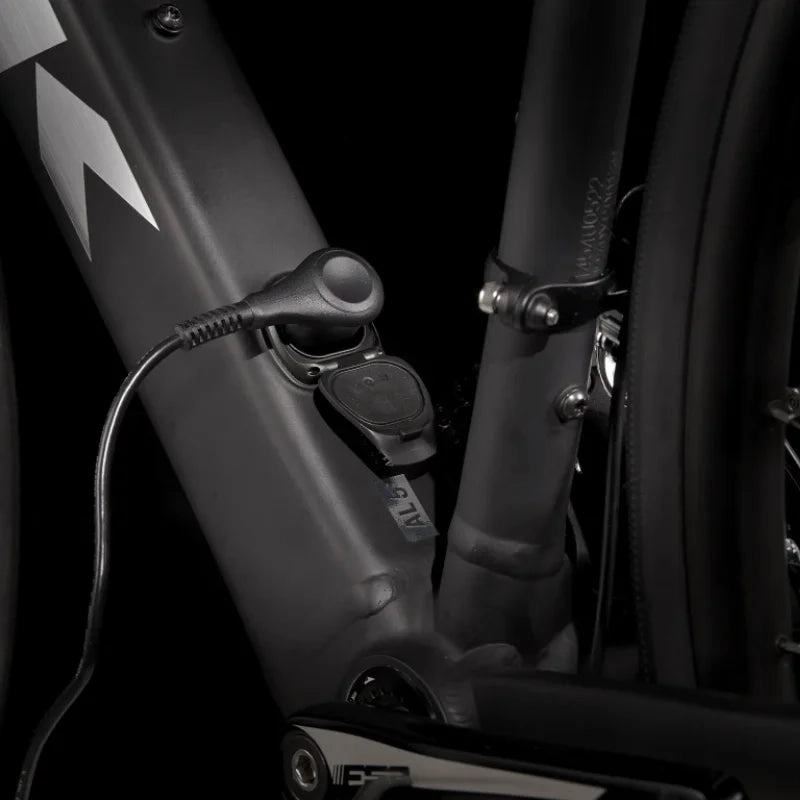

| Battery | 250 Wh, integrated in down tube |
| Charger | 2A, 42V output, 100V240V AC input |
WHEELS
| Hub Front | Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle |
| Skewer Front | Bontrager Switch thru axle, removable lever |

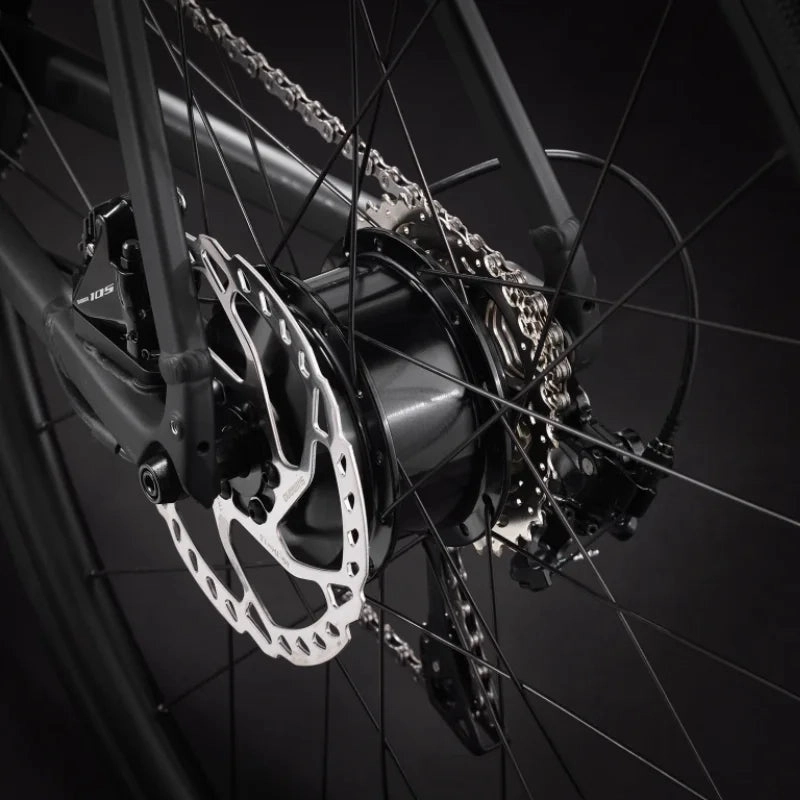

| Hub Rear | Hyena hub drive motor, 40 Nm, 250 W |
| Rim | Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max Tyre Size | 38mm without mudguards, 32mm with mudguards |
DRIVETRAIN
| Shifter | Size: 49, 52 Size: 54, 56, 58, 61 |
| Front Derailleur | Shimano 105 R7000, 31 mm clamp |
| Rear Derailleur | Shimano 105 R7000, long cage, 34T max cog |
| Crank | Size: 49 Size: 52 Size: 54, 56 Size: 58, 61 |
| Bottom Bracket | Torque sensor, threaded, 110 mm spindle |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano HG601, 11-speed |
| Max. Chainring Size | 2x: 50/34 |
COMPONENTS
| Saddle | Size: 49, 52 Size: 54, 56, 58, 61 |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar/stem | Size: 49 Size: 52 Size: 54, 56 Size: 58, 61 |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: 49 Size: 52, 54 Size: 56, 58 Size: 61 |
| Head Set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |

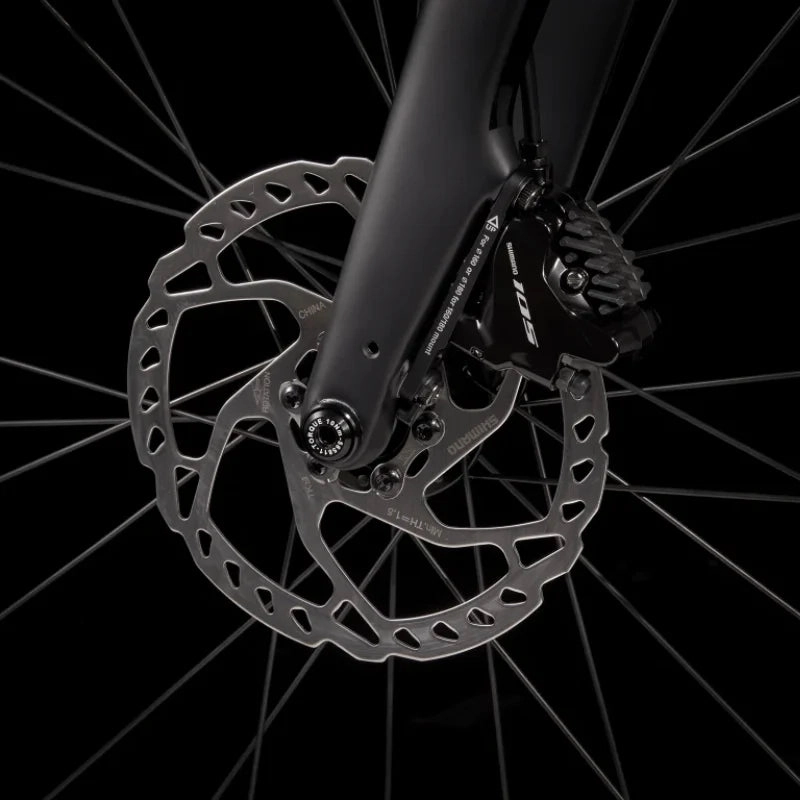

| Brake | Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin |
| Brake Rotor | Shimano RT66, 6-bolt, 160 mm |
| Rotor Size | Max brake rotor sizes: 160mm front & rear |
Sizing
Trek Domane AL 5 Sizing
| Size | Rider Height | Inseam |
| 49 | 156 - 163 cm (5'1" - 5'4") | 74 - 77 cm (29" - 30") |
| 52 | 163 - 168 cm (5'4" - 5'6") | 76 - 79 cm (30" - 31") |
| 54 | 168 - 174 cm (5'6" - 5'9") | 78 - 82 cm (31" - 32") |
| 56 | 174 - 180 cm (5'9" - 5'11") | 81 - 85 cm (32" - 33") |
| 58 | 180 - 185 cm (5'11" - 6'1") | 84 - 87 cm (33" - 34") |
| 61 | 185 - 191 cm (6'1" - 6'3") | 86 - 90 cm (34" - 34") |
Geometry
Trek Domane AL 5 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube | 44.0 | 47.5 | 50.0 | 52.5 | 54.8 | 56.7 |
| Seat Tube Angle | 74.6 | 74.2 | 73.7 | 73.3 | 73.0 | 72.7 |
| Head Tube Length | 11.0 | 13.0 | 14.5 | 16.0 | 18.0 | 22.0 |
| Head Angle | 70.8 | 71.3 | 71.3 | 71.9 | 72.0 | 72.1 |
| Effective Top Tube | 51.7 | 53.0 | 54.2 | 55.4 | 56.7 | 58.6 |
| Bottom Bracket Drop | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.8 |
| Chainstay Length | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 |
| Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| Trail | 6.7 | 6.4 | 6.4 | 6.5 | 6.5 | 6.4 |
| Wheelbase | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 104.3 |
| Standover | 72.7 | 75.3 | 77.2 | 79.4 | 80.9 | 82.5 |
| Frame Reach | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.5 |
| Frame Stack | 54.0 | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 |
| Stem Length | 80.0 | 90.0 | 90.0 | 100.0 | 100.0 | 110.0 |
