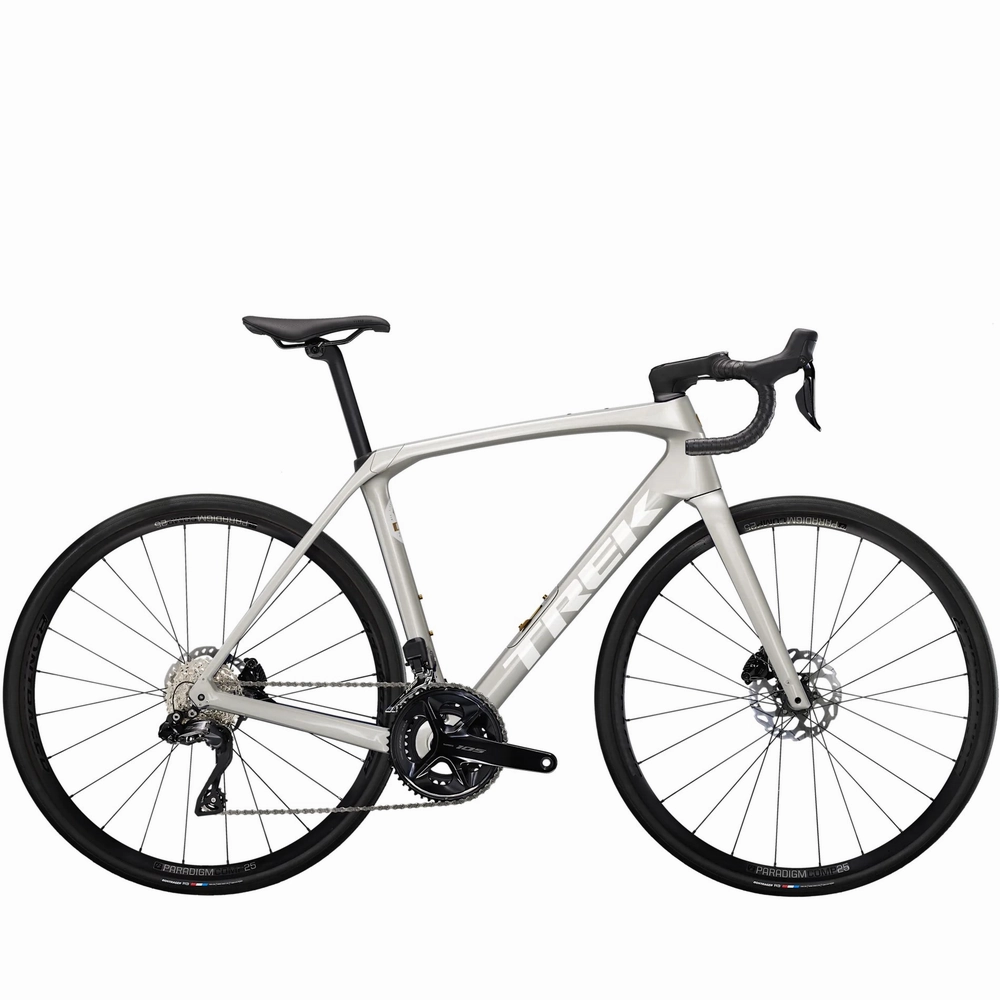

Trek Domane SL 6 Gen 4 Road Bike - Lunar Silver
The Trek Domane SL 6 Road Bike is an endurance road bike that's light, aerodynamic and built to take on long, rough miles in the saddle. With the huge advantage of an electronic Shimano 105 Di2 drivetrain and clearance for 38 mm tyres, the Trek Domane SL 6 Road Bike is ready to soar over cobbles and tarmac alike.
A fully integrated cockpit keeps your set-up looking as sleek as it feels, and an easy-access storage compartment stows ride essentials. Pair that with road-smoothing rear IsoSpeed, easy-access internal storage, tubeless-ready wheels and you'll be riding for longer and having more fun than you ever thought possible.
Key Features
- The smooth advantage:Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger for longer.
- Podium-topping speed: Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
- Lighter than ever: Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.
- Versatile tyre clearance: Comes equipped with fast-rolling 32 mm tyres, but offers clearance for up to 38 mm tyres so you can confidently ride everything from smooth tarmac to light gravel.
- Internal storage: Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.
- Shimano 105 Di2: With a shared Di2 platform inherited from Dura-Ace and Ultegra, sophisticated ergonomics, Shimano 105-optimised gear combinations and an exceptional hydraulic disc brake system, Shimano 105 Di2 R7100 marks a new era of affordable, 12-speed electronic performance. You can set up the drivetrain just the way you like it via Shimanos user-friendly E-Tube app.
Specification
| Frameset | |
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12mm thru axle |
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Wheels | |
| Wheel Front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| Wheel Rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle |
| Skewer | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm |
| Max Tyre Size | 38mm without mudguards, 35mm with mudguards |
| E-System | |
| Battery | Shimano BT-DN300 |
| Charger | Charging cable included |
| Drivetrain | |
| Shifter | Shimano 105 R7170, 12-speed |
| Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7150 Di2, 36T max cog |
| Crank | Size: 44, 47 Shimano 105 R7100, 50/34, 165 mm length Size: 50, 52 Shimano 105 R7100, 50/34, 170 mm length Size: 54, 56 Shimano 105 R7100, 50/34, 172.5 mm length Size: 58, 60, 62 Shimano 105 R7100, 50/34, 175 mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Components | 1x: 48T, 2x: 52/36 |
| Saddle | Size: 44, 47, 50, 52 Verse Short Comp, steel rails, 155 mm width Size: 54, 56, 58, 60, 62 Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Size: 44, 47, 50, 52, 54, 56 KVF aero carbon seat post, 20 mm offset, 280 mm length Size: 58, 60, 62 KVF aero carbon seat post, 20 mm offset, 320 mm length |
| Handlebar | Size: 44, 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width Size: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width Size: 58, 60, 62 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: 44 Trek RCS Pro, -7-degree, 60 mm length Size: 47 Trek RCS Pro, -7-degree, 70 mm length Size: 50 Trek RCS Pro, -7-degree, 80 mm length Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length Size: 60, 62 Trek RCS Pro, -7-degree, 110 mm length |
| Brake Rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor Size | Max brake rotor sizes: 160 mm front and rear |
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XXXS(44) | 150 - 153 cm 4'11" - 5'0" | 71 - 73 cm 28" - 29" |
| XXS(47) | 152 - 158 cm 5'0" - 5'2" | 71 - 75 cm 28" - 30" |
| XS(50) | 158 - 163 cm 5'2" - 5'4" | 74 - 77 cm 29" - 30" |
| S(52) | 163 - 168 cm 5'4" - 5'6" | 76 - 79 cm 30" - 31" |
| M(54) | 168 - 174 cm 5'6" - 5'9" | 78 - 82 cm 31" - 32" |
| M/L(56) | 174 - 180 cm 5'9" - 5'11" | 81 - 85 cm 32" - 33" |
| L(58) | 180 - 185 cm 5'11" - 6'1" | 84 - 87 cm 33" - 34" |
| XL(60) | 185 - 190 cm 6'1" - 6'3" | 86 - 90 cm 34" - 35" |
| XXL(62) | 190 - 195 cm 6'3" - 6'5" | 89 - 92 cm 35" - 36" |
Geometry
| Size | Rider Height | Inseam |
|---|---|---|
| 44 | 150 - 153 cm 4'11" - 5'0" | 71 - 73 cm 28" - 29" |
| 47 | 152 - 158 cm 5'0" - 5'2" | 71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" | 74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" | 76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" | 78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" | 81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" | 84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" | 86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" | 89 - 92 cm 35" - 36" |
