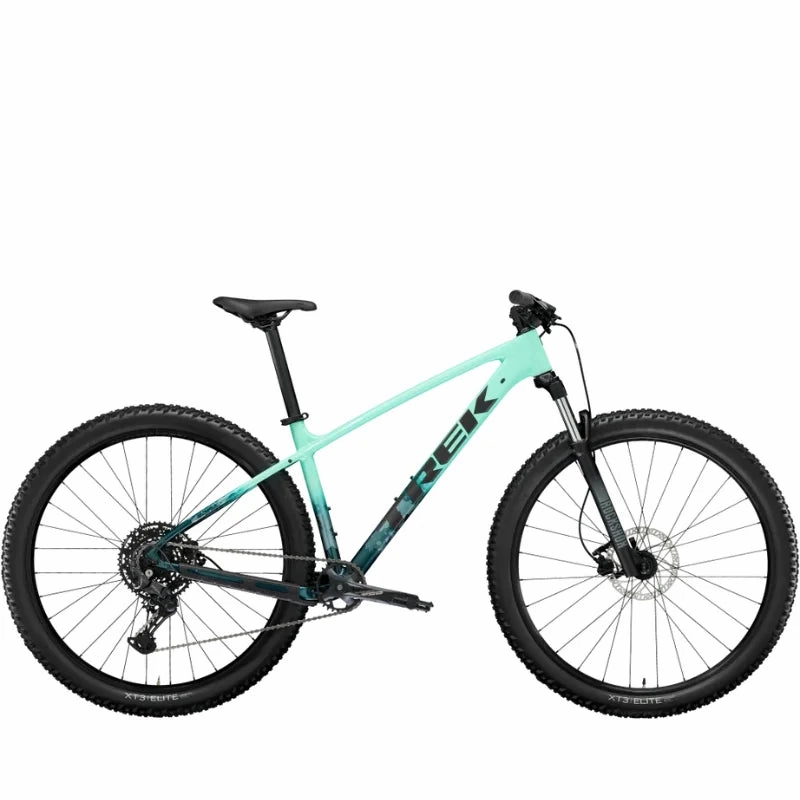

Trek Marlin 6 Gen 3: Master Your Trails and Beyond
The Trek Marlin 6 Gen 3 is your ultimate companion for trail progression and versatile riding experiences. Featuring updated frame geometry for enhanced control on descents and an improved suspension fork to tackle rough trails, this bike offers a well-rounded trail biking experience. With integrated rack and kickstand mounts, it's equipped for customization and accessorizing to suit your varied needs, whether you're honing your skills on the trail or cruising through city streets.
Ideal for: Tailored for riders seeking a capable and confidence-inspiring trail bike that doubles as a versatile commuter. The Marlin 6 is perfect for those looking to refine their skills on dirt trails while also accommodating daily commutes to work or school with ease and comfort.
Key Technologies:
- Lightweight aluminium frame with modern trail geometry and internal cable routing for a clean and protected setup.
- RockShox Judy front suspension fork with 100 mm travel, providing a smooth and controlled ride over rocks and roots on the trail.
- 10-speed Shimano CUES shifting system for reliable and effortless gear changes, complemented by hydraulic disc brakes for reliable stopping power.
What Makes It Stand Out: The Trek Marlin 6 Gen 3 distinguishes itself with its versatility, offering stable and controlled trail performance along with commuter-friendly features. With a combination of modern frame geometry, reliable components, and space for enhancements, this bike is designed to grow with you as you push your limits on various terrains.
Reasons to Embrace It:
- Experience enhanced trail capability with features like larger tyre clearance, internal dropper post routing, ThruSkew rear axle, and a longer, slacker geometry for improved stability on challenging terrain.
- The responsive RockShox fork offers 100 mm of suspension, providing a plush and smooth ride by absorbing bumps and obstacles on the trail.
- Utilize rack and mudguard mounts to easily personalize your bike for commuting needs, transforming your mountain bike into a versatile urban steed.
- Seamless internal routing allows for hassle-free installation of a dropper post, enabling quick and convenient seat height adjustments for confident descending.
- Enjoy improved accessibility for smaller riders with Marlin models available in XXS and XS sizes, featuring a curved top tube and lower standover height for easy mounting and dismounting.
The Trek Marlin 6 Gen 3 is not just a bike; it's a versatile tool for mastering trails, exploring city streets, and enhancing your riding skills. With a blend of trail-focused features and commuter-friendly capabilities, this bike ensures that every ride is an enjoyable and tailored experience designed to inspire confidence both on and off the beaten path.
Trek Marlin 6 Gen 3 Specification
| Description | |
| Frame | Size: XXS , XS Size: S , M , ML , L , XL , XXL |
| Fork | Size: XXS Size: XS , S Size: M , ML , L , XL , XXL |
| Max compatible fork travel | 120mm, XXS: 80mm |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer Rear | 173x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Size: XXS Size: XS , S Size: M , ML , L , XL , XXL |
| Max Tyre Size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Shifter | Shimano U6000, 10-speed |
| Rear Derailleur | Shimano CUES U6000 GS |
| Crank | Size: XXS , XS Size: S , M , ML Size: L , XL , XXL |
| Bottom Bracket | FSA, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Size: XXS Size: XS , S , M Size: ML , L , XL , XXL |
| Handlebar | Size: XXS , XS Size: S Size: M , ML , L , XL , XXL |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Size: XXS , XS , S Size: M , ML , L Size: XL Size: XXL |
| Head Set | Semi-integrated, 1-1/8" |
| Brake Rotor | Tektro, 6-bolt, 160mm |
| Brake Set | Size: XXS , XS , S Size: M , ML , L , XL , XXL |
| Rotor Size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 14.50 kg / 31.97 lbs (with tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Trek Marlin 6 Gen 3 Sizing
| ? Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11")? | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| 2XL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Trek Marlin 7 Gen 3 Geometry
Sizing Table
| Frame Size Number | 13.5" | 14.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23.0" |
| Frame Size Letter | XXS | XS | S | M | ML | L | XL | XXL |
| Wheel Size | 26" | 27.5" | 27.5" | 29" | 29" | 29" | 29" | 29" |
| A - Seat Tube | 32.0 | 34.0 | 37.0 | 42.0 | 43.5 | 45.0 | 50.0 | 54.0 |
| B - Seat Tube Angle | 74.0?? | 73.8?? | 73.8?? | 73.4?? | 73.4?? | 73.4?? | 73.4?? | 73.4?? |
| Effective Seat Tube Angle | 74.0?? | 74.0?? | 74.0?? | 74.0?? | 74.0?? | 74.0?? | 74.0?? | 74.0?? |
| C - Head Tube Length | 9.0 | 9.0 | 10.0 | 10.5 | 11.0 | 11.5 | 13.5 | 15.0 |
| D - Head Angle | 66.5?? | 66.5?? | 66.5?? | 66.5?? | 66.5?? | 66.5?? | 66.5?? | 66.5?? |
| E - Effective Top Tube | 52.1 | 55.1 | 57.9 | 61.5 | 63.1 | 64.7 | 67.8 | 70.7 |
| F - Bottom Bracket Height | 30.2 | 31.3 | 31.3 | 30.8 | 30.8 | 30.8 | 30.8 | 30.8 |
| G - Bottom Bracket Drop | 3.8 | 4.5 | 4.5 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| H - Chainstay Length | 43.3 | 43.3 | 43.3 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
| I - Offset | 4.0 | 4.2 | 4.2 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| J - Trail | 10.4 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| K - Wheelbase | 106.0 | 109.2 | 112.1 | 116.3 | 118.0 | 119.7 | 123.0 | 126.1 |
| L - Standover | 65.0 | 65.8 | 69.2 | 74.7 | 75.9 | 77.1 | 79.1 | 81.6 |
| M - Frame Reach | 36.5 | 39.0 | 41.5 | 44.0 | 45.5 | 47.0 | 49.5 | 52.0 |
| N - Frame Stack | 54.4 | 56.3 | 57.2 | 60.9 | 61.4 | 61.8 | 63.7 | 65.1 |
