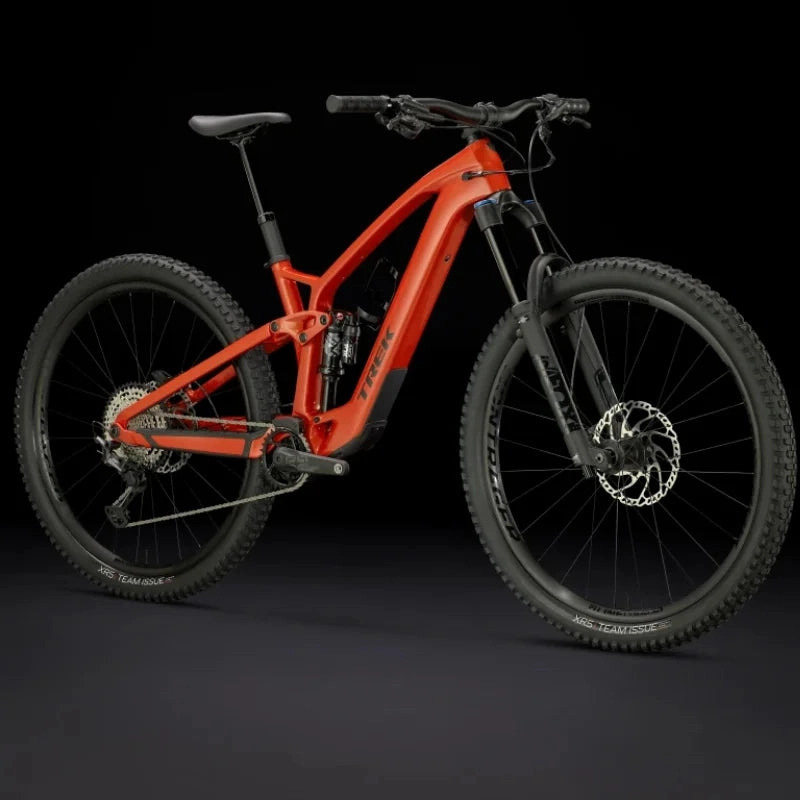

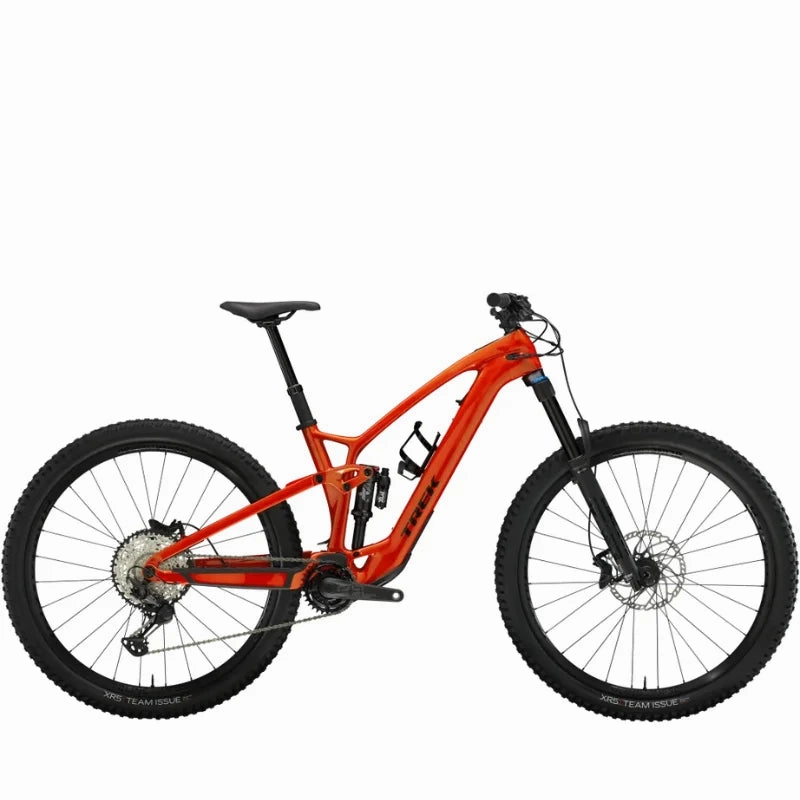

Introducing the Trek Fuel EXe 9.7 in Lava: Unleash Your Trail Potential!
Experience the Next Evolution of E-Mountain Biking: The Fuel EXe 9.7 sets a new standard for e-mountain biking, offering a ride that's light, lively, and as playful as a traditional mountain bike, with the added benefit of pedal assist to conquer even the toughest climbs. With an upgraded suspension package and carefully selected components, this bike delivers snappy shifting, precise modulation, and unmatched performance on any trail.
Tailored for Trail Enthusiasts: Designed for riders who crave the thrill of the trail, the Fuel EXe 9.7 offers the perfect blend of power and agility. Whether navigating technical terrain or soaring down descents, this bike provides a natural and immersive riding experience, with a refined motor that quietly assists you as you ride.
Cutting-Edge Technology, Unmatched Performance: Equipped with an OCLV Mountain Carbon frame, fully-encased 360 Wh battery, and TQ harmonic pin ring transmission, the Fuel EXe 9.7 combines advanced technology with exceptional performance. With a 150mm FOX Rhythm 36 fork, 140mm FOX Performance Float X rear suspension, Tubeless Ready wheels, and a 12-speed drivetrain featuring Shimano SLX and XT components, this bike is ready to tackle any trail with confidence and precision.

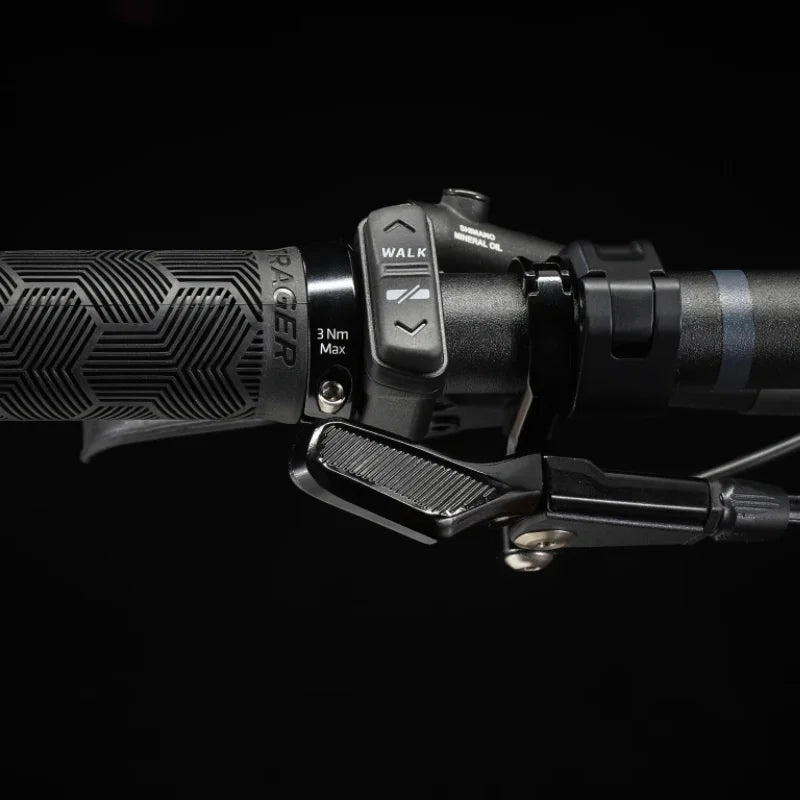

Unleash Your Trail Potential: Experience the thrill of light and playful descents, paired with just the right amount of assist on challenging climbs. The Fuel EXe 9.7's innovative TQ transmission keeps things quiet and natural, while its smart charge port, sleek integrated display, and discreet controls maintain the look and feel of a traditional mountain bike.
Why Choose the Fuel EXe 9.7:
- Versatile Performance: Enjoy a light and playful ride on descents, with added power for conquering climbs with ease.
- Natural Ride Feel: The TQ transmission delivers quiet, natural power, ensuring an immersive riding experience on any trail.

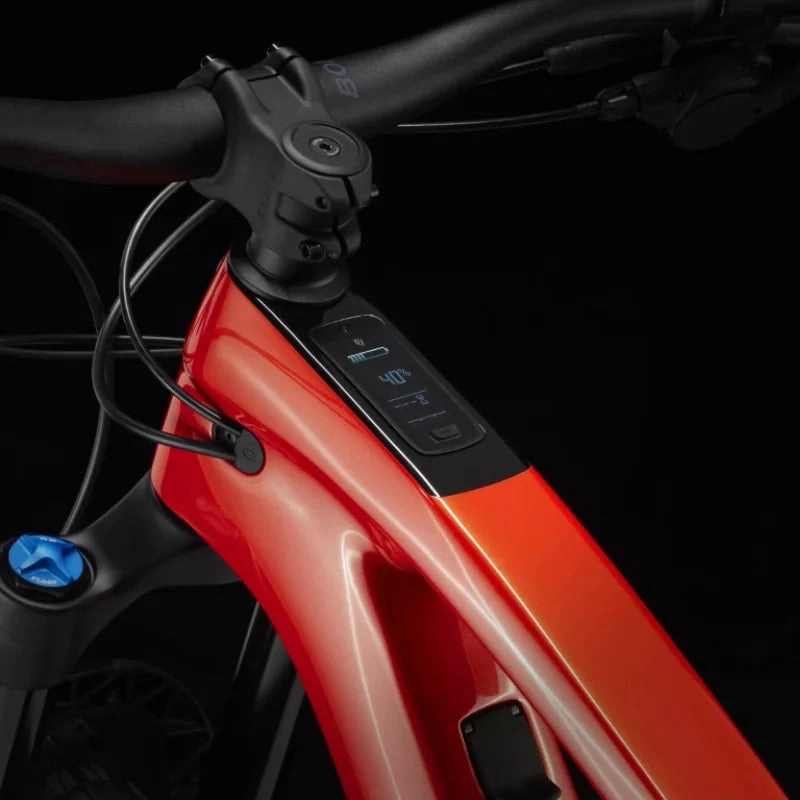

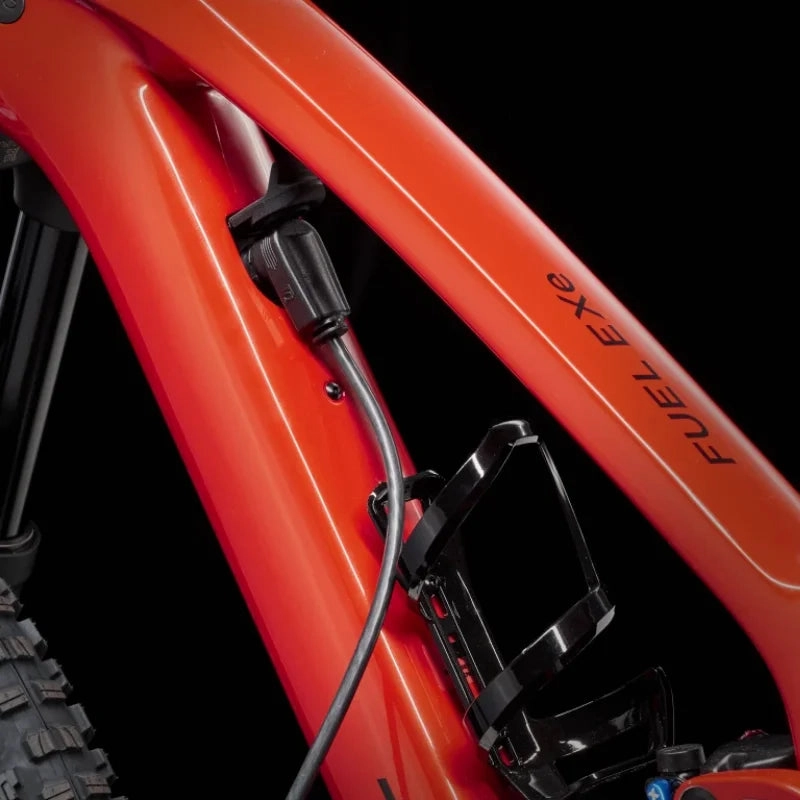

- Sleek Design: With its smart charge port and integrated display, the Fuel EXe 9.7 maintains the aesthetic of a traditional mountain bike.

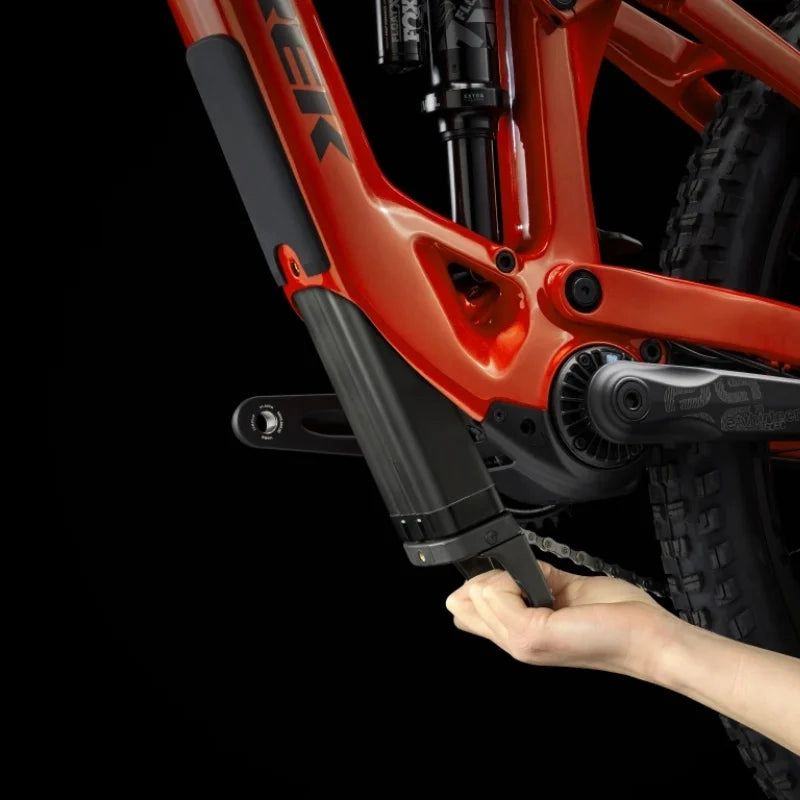

- Convenient Battery Removal: Easily remove the battery with an Allen key, no proprietary tools required.
- Expand Your Range: Add a range extender for those epic days on the trail, ensuring you have plenty of fuel to keep riding.
Conclusion: Unleash your trail potential with the Trek Fuel EXe 9.7. Offering a light, lively, and playful ride, combined with the power and performance of an e-bike, it's the perfect choice for riders seeking adventure on any terrain.
Specification
| Description | |
| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

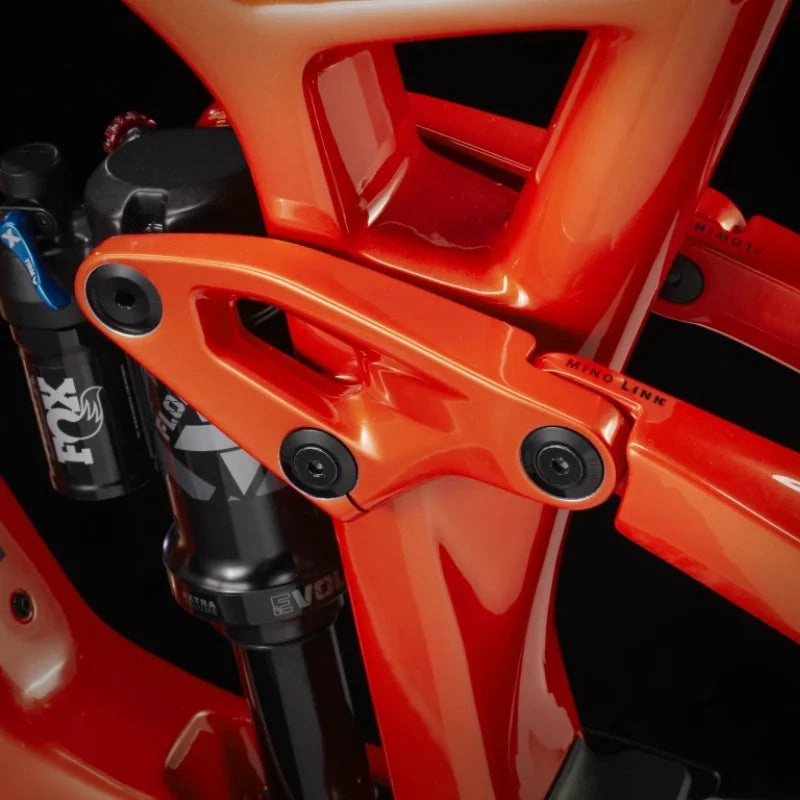

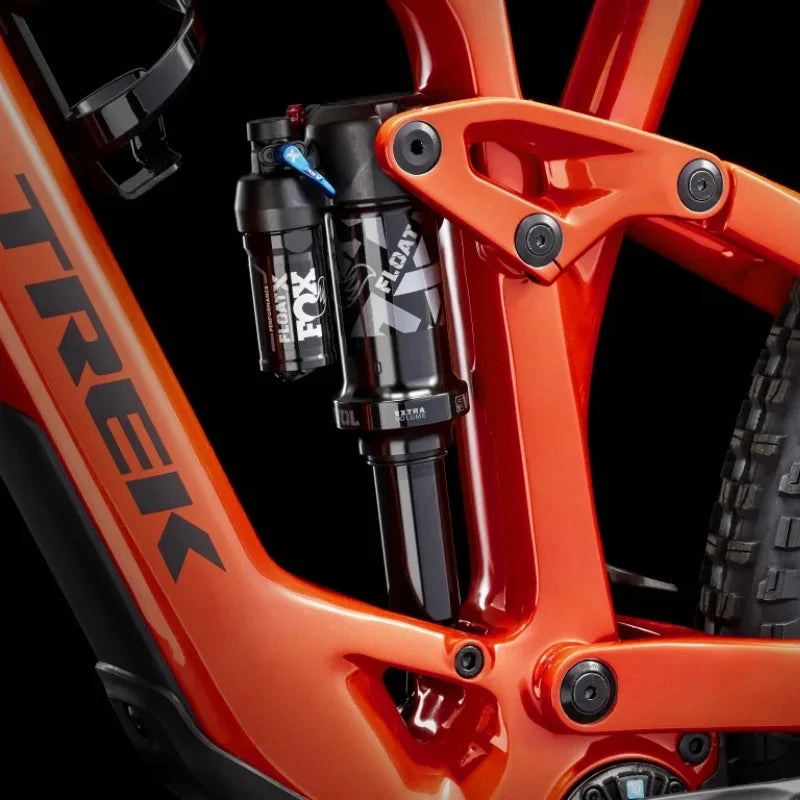

| Shock | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Wheel Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Wheel Rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Battery | TQ 360Wh |

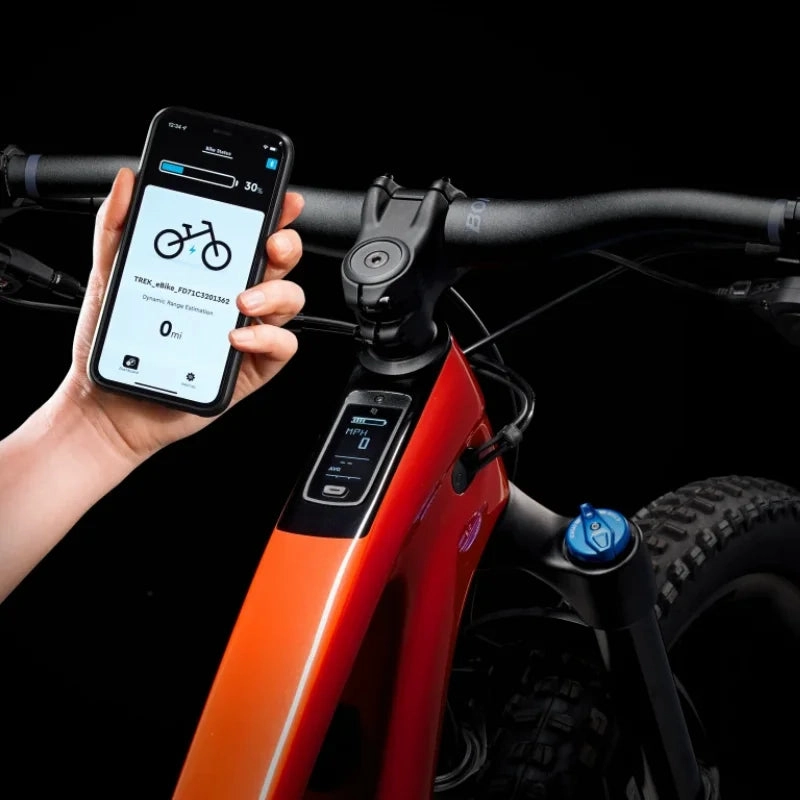

| Computer | TQ LED display with Bluetooth & ANT connectivity |

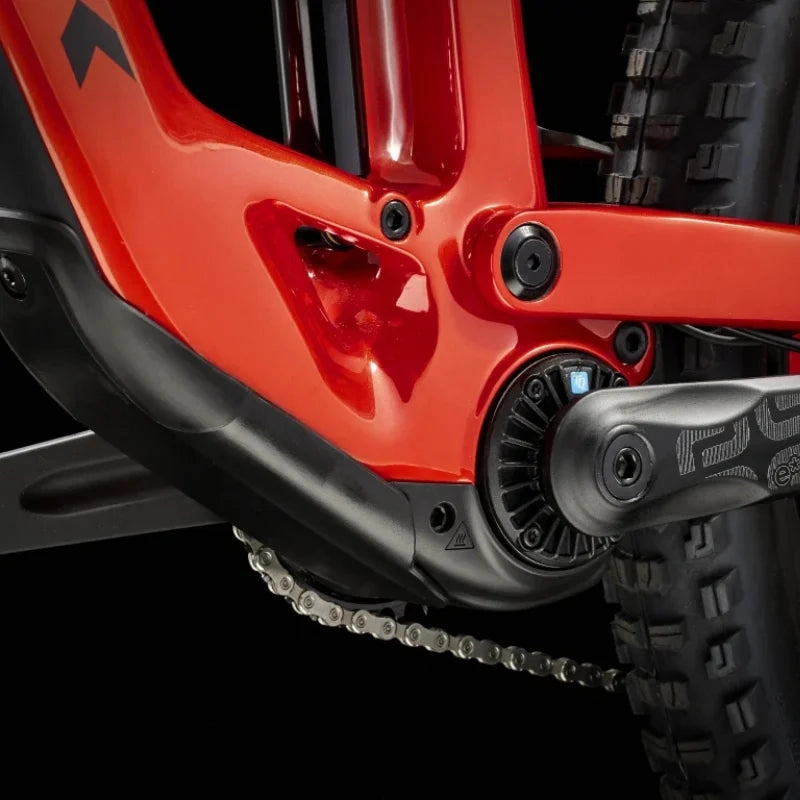

| Motor | TQ-HPR50, 50Nm, 250 watt maximum continuous rated power, 300-watt peak power |
| Shifter | Shimano SLX M7100, 12-speed |
| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | E*thirteen E*spec Plus, 165 mm length |
| Chainring | E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: S, M, L, XL Size: S, M, L, XL |
| Seatpost | Size: S Size: M Size: L, XL |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |

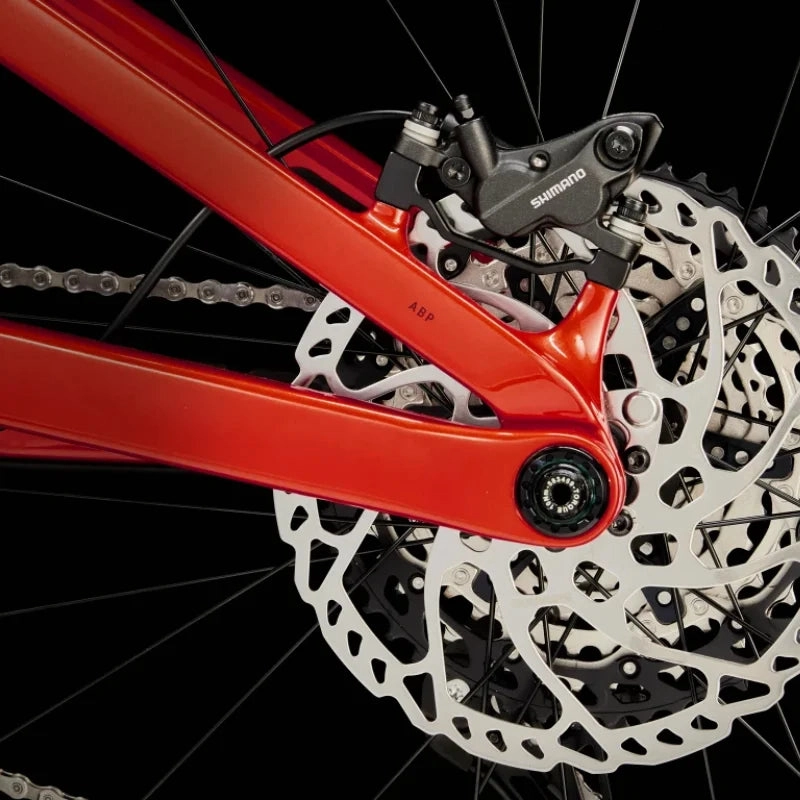

| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Shimano RT66, 6-bolt, 203 mm |
| Brake Rotor | SRAM 6-bolt, 200 mm |
| Electronics | TQ 4A charger |
| Weight | M 19.15 kg/42.22 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Geometry
Sizing Table
| Frame Size Number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
| Frame Size Letter | S | S | M | M | L | L | XL | XL |
| Geometry Position | High | Low | High | Low | High | Low | High | Low |
| Wheel Size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Seat Tube | 38.0 | 38.0 | 41.0 | 41.0 | 43.5 | 43.5 | 47.0 | 47.0 |
| Seat Tube Angle | 69.3 | 68.8 | 69.8 | 69.3 | 70.8 | 70.3 | 71.3 | 70.8 |
| Effective Seat Tube Angle | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 |
| Head Tube Length | 10.0 | 10.0 | 11.0 | 11.0 | 11.0 | 11.0 | 12.0 | 12.0 |
| Head Angle | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 |
| Effective Top Tube | 57.2 | 57.3 | 59.9 | 60.0 | 62.9 | 63.0 | 65.6 | 65.8 |
| Bottom Bracket Height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
| Bottom Bracket Drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
| Chainstay Length | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0c |
| Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
| Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
| Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
| Frame Reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.3 | 48.3 | 51.4 | 50.8 |
| Frame Stack | 61.6 | 62.0 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
